5.99 inch 1080X2160 FHD color active matrix AMOLED module

Overview

BOE 5.99" FHD is a color active matrix AMOLED module using Low Temperature Poly-silicon TFT’s (Thin Film Transistors) as active switching devices. This module has a 5.99inch diagonally measured active area with FHD resolutions (1080horizontal by 2160vertical pixel arrays). Each pixel is divided into RED and GREEN dots, or BLUE and GREEN dots, and two pixels share RED or BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors.

Specification

Item	Specifications	Unit	Remark
Panel outline	70.04×139.53×0.13	mm
Number of dots	1080×2160		18:9
Active area	68.04×136.08	mm
Diagonal Inch	5.99	inch
Pixel pitch	63	um
Pixel Arrangement	GGRB
MDL outline	71.35×150.42	mm
View area	68.63×137.08	mm
Weight	TBD
Total Thickness	1.416	mm

Services

1. Product quality control and delivery time is strictly controlled;

2. Direct manufacturing factory offering competitive price;

3. All the inquiries will be replied within 12 hours;

4. Good service are available;

5. Providing first-class after-sales services to the customers.

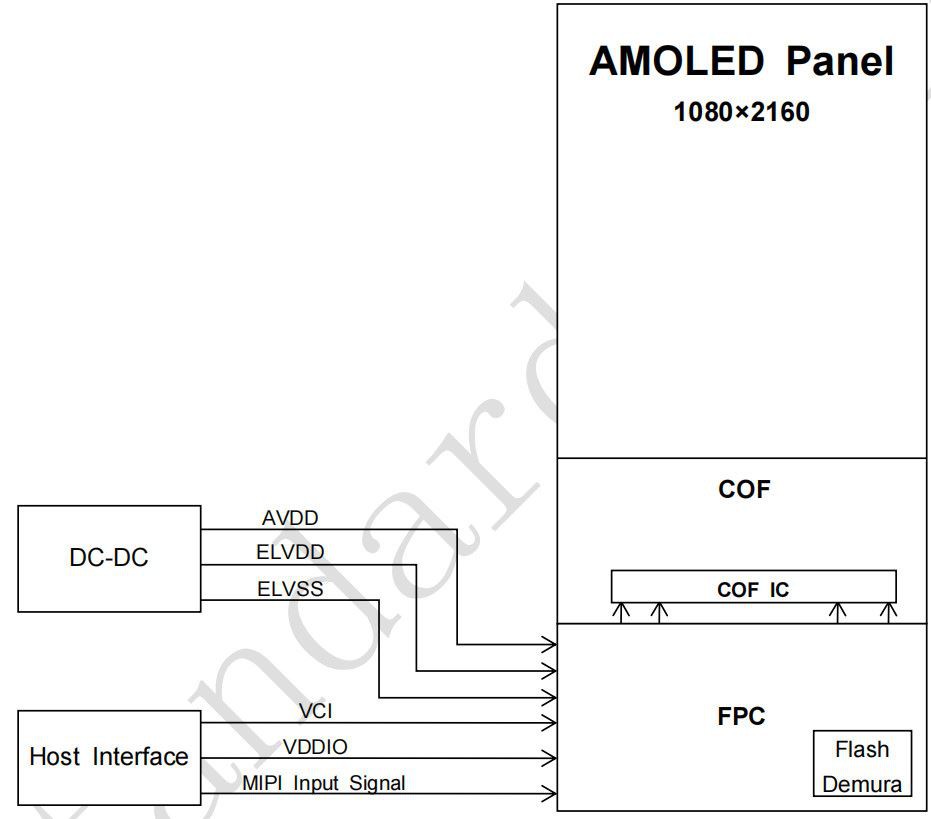

Drawings

Quality control

1. Checking raw material before producing.

2. Checking one by one before the assebling

3. Checking one by one during the production

4. Have the random inspection before the delivery.

Our company

Our company has more than 16 years working experiences on researching and selling.

Products are well sailed all over the world, got many compliments from customers.

Hot Tags: flexible display 5.99inch 1080x2160 amoled, China, suppliers, manufacturers, factory, custom, wholesale, price, 1 39 amoled display, 1.39 amoled display, Amoled Display

Flexible Display 5.99inch 1080x2160 AmOLED
