Product Description

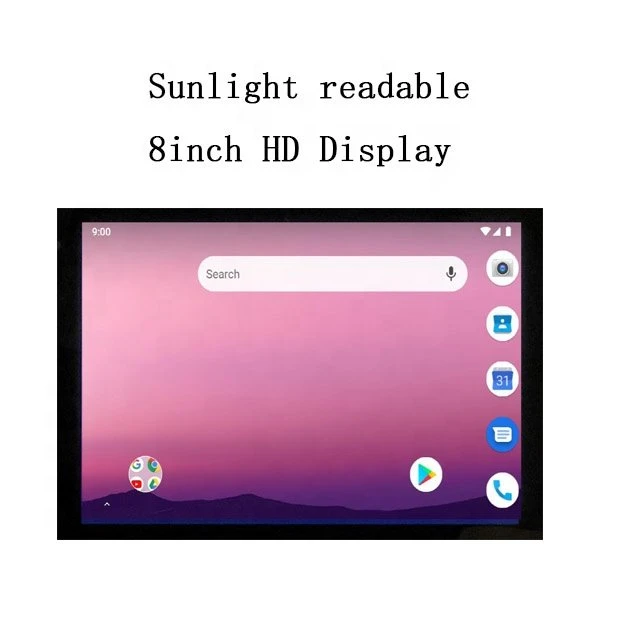

8 Inch 1024x600 TFT LCD Display is an 8-inch, 1024x600RGB, industrial-grade LCD monitor with a 16:9 aspect ratio. Its working temperature is -30~85℃, and the storage temperature is -40~90℃. It is often used as industrial control equipment, vehicle-mounted instruments and other products, and has been widely used in the automotive field and industrial applications in extreme environments.

Features

It has undergone a variety of scenarios and technical testing, so the product size is standard, reliable in quality and high in safety. It is sturdy and durable, resistant to high temperature and low temperature, and has a long service life. It keeps up with the trend of the times. After continuous transformation and upgrading, the product is not only beautiful in appearance, but also extremely practical.

Specification

Display Mode	Normal White
Display Mode	Active matrix TFT,Transmissive type
DisplayFormat	RGB Stripe
Color	16.7M
InputData	LVDS interface
ViewingDirection	All
Backlight	White LED
Dimensional outline(mm)	192.8(W)×116.9(L)×4.7(D)
Number of Pixel	1024(RGB)×600
LCD A.A(mm)	176.64(W)×99.36 (L)
Pixel Pitch(mm)	0.1725x0.1656

Application

Company Profile

Das main products are small and middle size (1”to 18.5”) color TFT displays, as well as touch screen and other accessories. Das launched Transflective TFT display, this kind of display is widely used in outdoor applications. Currently we have 2.2' TFT, 2.4' TFT, 3.0' TFT, 3.5'TFT , these displays have been highly praised by our industry customers. To meet different customer's request , we also developed serial interface color tft （3.5'~10.4'）, help the majority of use 51 single chip manufacturers don’t need upgrade systems, help them use the beautiful and generous color LCD screen, easily upgrade product.

Since 2012, company has launched internal LCD Plus product innovation activity. On the basis of product resources, technical precipitation and numerous customer resources accumulated over the years, we launched the ODM integration business of the system motherboard and the whole device product (Internet of Vehicle), until now we have succeeded to develop 4 kinds of Qualcomm solutions vehicle devices, as well as variety of IOT product such as STM, ITE, MICROCHIP, RENESAS, achieved deeply cooperation with some well-known brand domestic and foreign enterprises. Through the business of the past few years, DAS has applied for a number of patents and software Copyrights, become a high-tech enterprise in Shanghai by the end of 2019. In the beginning of 2020, DAS successfully achieved Shanghai Zhangjiang Zone special development fund key project funding support.As a professional LCD display manufacturer& innovative ODM integrator, we are ready to serve market, grow up steadily!
