Overview

This TFT-LCD has a 5.0 inch diagonally measured active area with FHD resolutions (1080 horizontal by 1080 vertical pixel array). Each pixel is divided into Red, Green, Blue dots which are arranged in 1pixel 2 domain and this panel can display 16.7M colors.

Specification

● Comes with development resources and manual

● 0.2t Glass (Single)

● High contrast ratio and wide viewing angle

● Module with TP Design

● RoHS Compliant

● Customization accepted

● HDMI adapter board optional

Feature	Spec.
LCD display module specification	Size		5 inch
	Resolution		1080(RGB) x1080
	Interface		MIPI DSI
	Color Depth		16.7M
	Technology Type		a‐Si TFT
	Dot Pitch (H×V)		0.1176*0.1176
	Display Mode		Transmissive
	Surface Treatment		HC
	Color Gamut		80%(Min)
	Viewing Direction		All
Mechanical Structure	Assy Type		COG+FPC+BL
	DIM.	LCM (W x H x D) (mm)	143 (H) × 140(V) × 4.2(D)
	Active Area(mm)		127.008 (H) ×127.008 (V)
	BACKLIGHT		WHITE LED Backlight

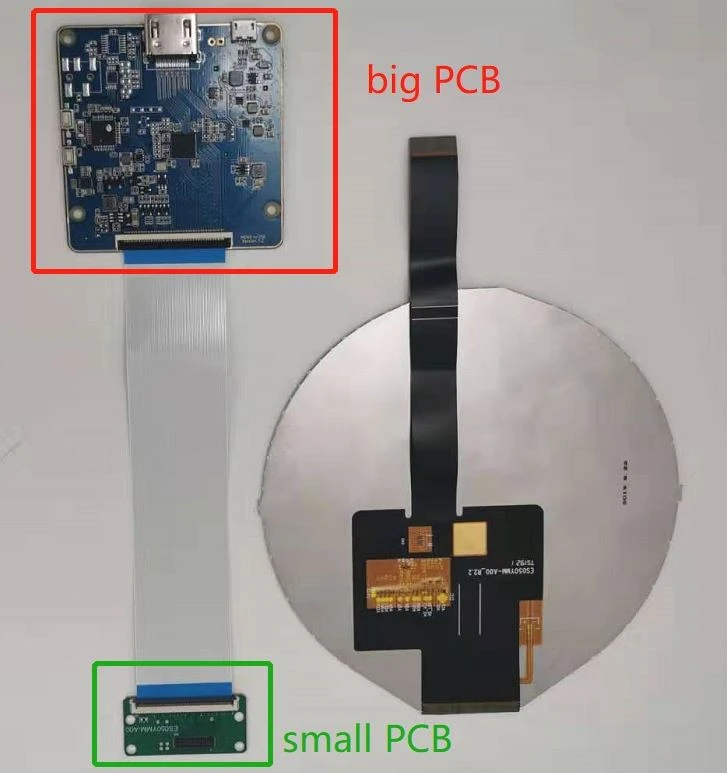

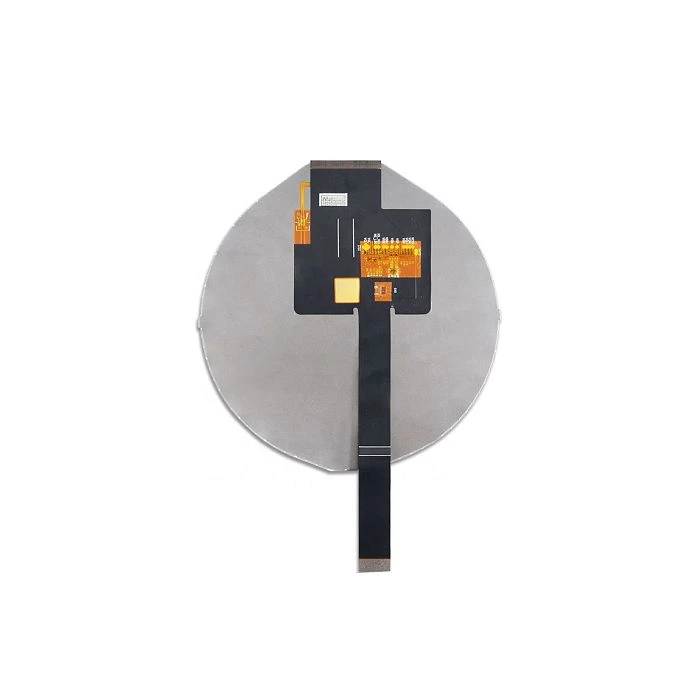

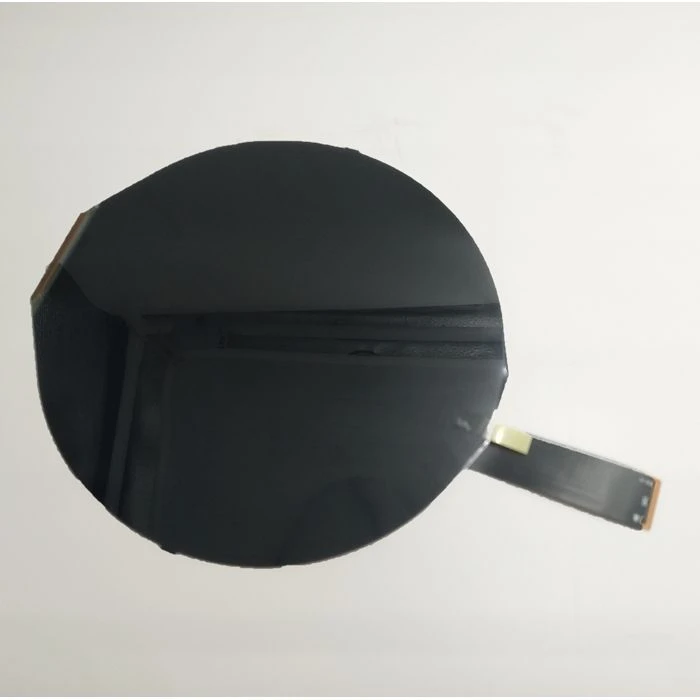

Picture Detail

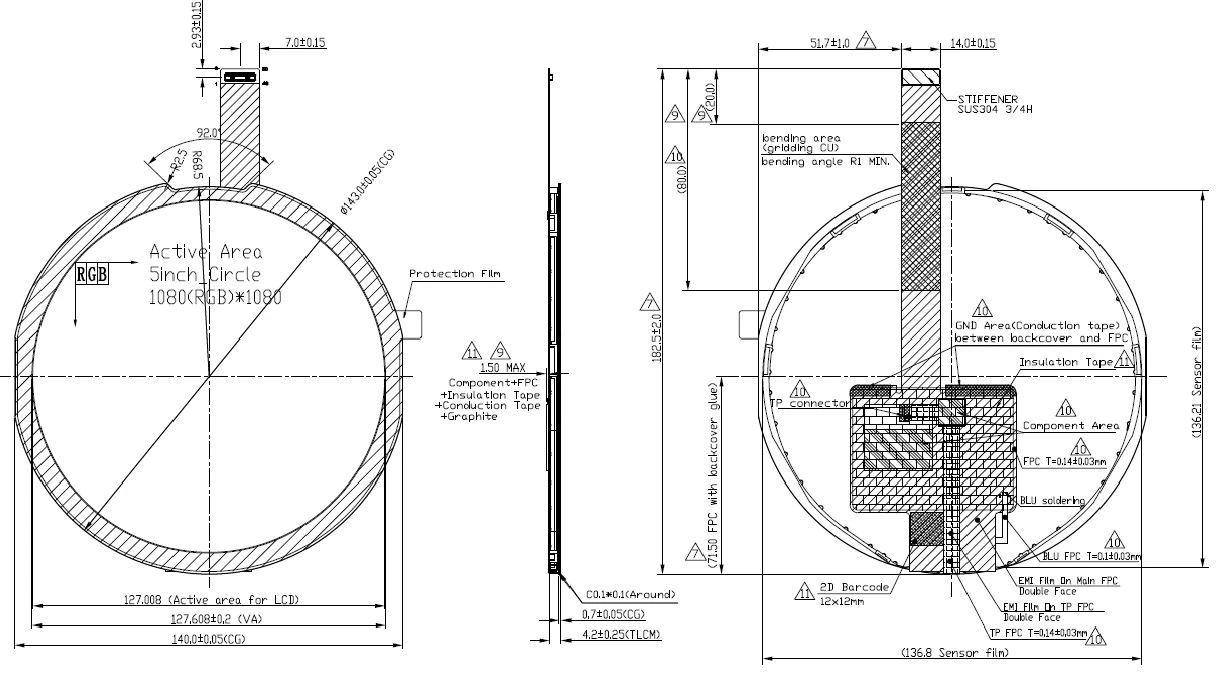

Drawings

How We Control Quality

Reliable inspection service is the cornerstone to ensure delivery quality. effectively help control quality risks and reduce quality control costs
Quality control involves testing of units and determining if they are within the specifications for the final product.

Quality testing involves each step of the manufacturing process. Employees often begin with the testing of raw materials, pull samples from along the manufacturing line and test the finished product.

We confirm 100% QC outgoing control before release shipment.

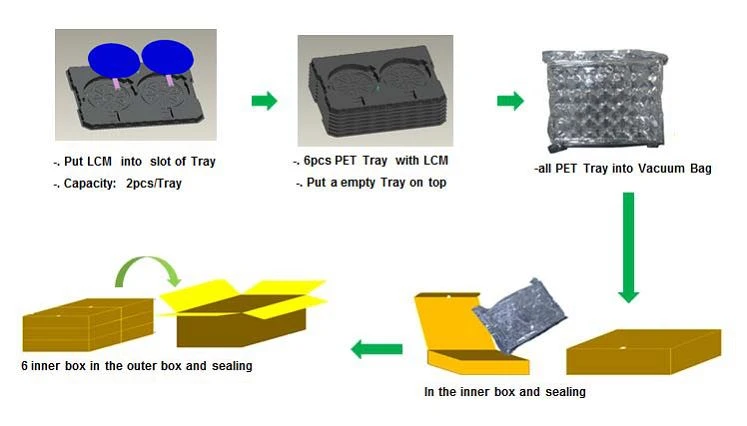

Packing and Delivery:
