1.39inch amoled LCD Display Module, 400x400 HD Resolution, mipi Interface

Product introduction

1.39 Inch 400x400 AmOLED Display is becoming more and more popular, they are mainly used on high-end wearable devices. DAS providing different sizes and different kinds of round display, include round lcd display and round amoled or monochrome oled and circular TN display. This is a general Amoled LCD display Module, 1.39inch diagonal, 400x400 HD resolution, with embedded controller, communicating via mipi interface. The interface is rich and complete, easily meets the needs of different industries, and supports customization.

Product Features

The 1.39 Inch 400x400 AmOLED Display outer metal body design enhances the dust and pressure resistance of the body. The high temperature resistance increases the air circulation area; the heat dissipation effect is more efficient; the dust isolation is more significant, and the operation is stable. The integrated design of the internal structure can more predictably optimize the layout of the heating elements to ensure more efficient heat dissipation. Special filters reduce blue light and protect eyes. The high-definition picture quality and vivid colors bring visual enjoyment to people. The angle can be adjusted at will.

Pictures

Production Feature

● Comes with development resources and manual

● Display type: Amoled

● Driver IC: RM67162

● Interface : MIPI

● Display color: RGB, 65K color

● Resolution: 400x400

● Interface Description: 24pins

Specification

Feature			Spec.
Display Spec.	Size		1.39 inch
	Resolution		400(RGB) x400
	Interface		1 Lane MIPI（Video Mode Only）
	Color		16.7M
	Technology Type		Amoled
	Dot Pitch (H×V)		29.5*88.5um
	Glass Thickness		0.2mm
	Pixel arrangement		Real RGB arrangement
	IC		RM67162
	Viewing Direction		All
Mechanical Characteristics	Assy Type		COG+FPC+BL
	DIM.	LCM (W x H x D) (mm)	38.6 x 40.5 x 0.69
	Active Area(mm)		φ35.4
	With /Without TSP		Without TSP
	Weight (g)		2g

Drawing

Packing and delivery:

● Payment terms: T/T

● Shipping: prompt delivery by UPS, EMS, DHL, TNT, and FedEx or by air

● Delivery lead-time: 7-10 days for goods in stock, 3-4 weeks for mass production goods

● Packing details: packed in anti-static bags with foam box to ensure safety in transportation

● Delivery details: 1 to 30 days, delivery fee is up to the weight and volume of the products

Production Qualification

Environment test

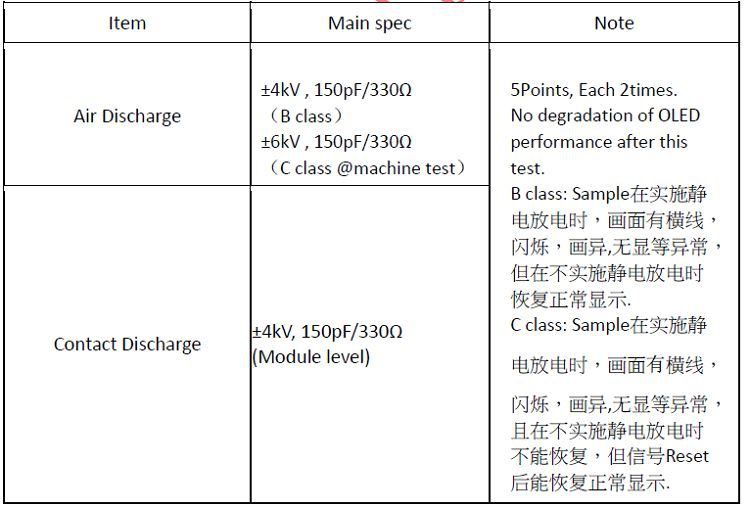

Electrical test

Mechanical test
