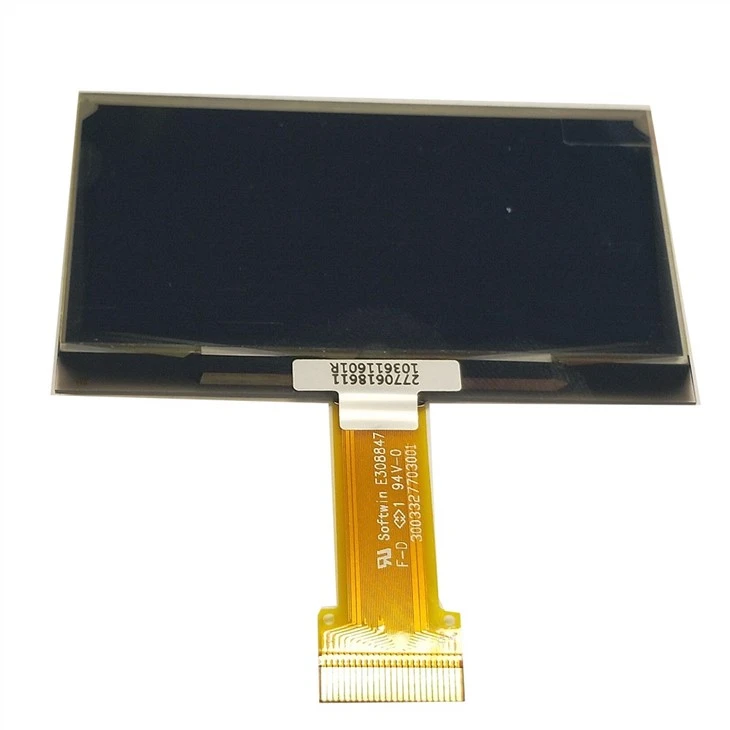

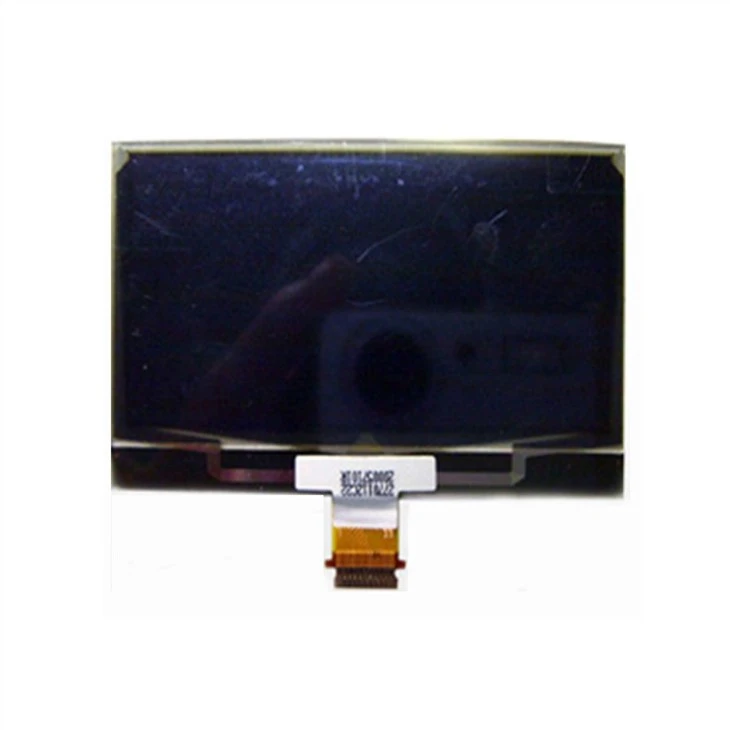

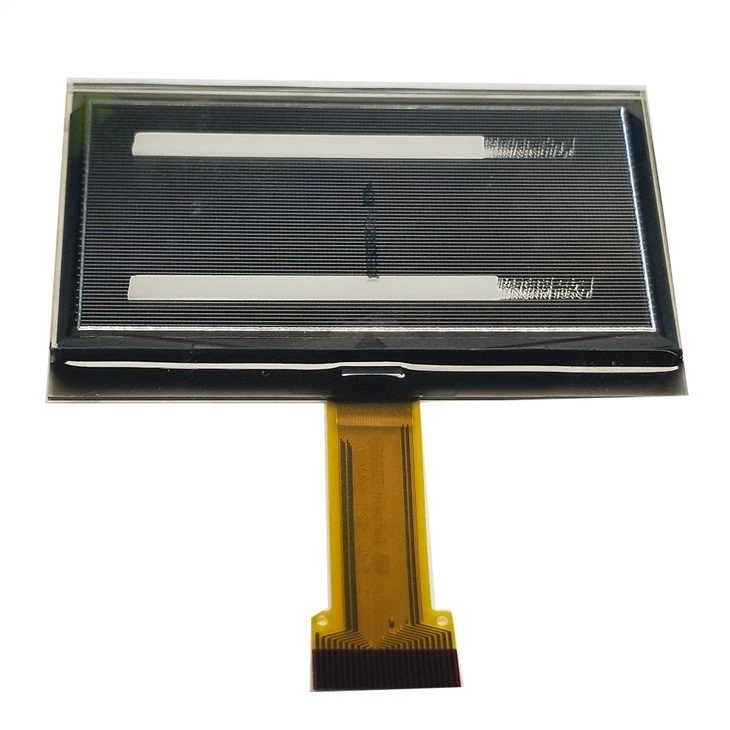

2.4 inch 128X64 yellow color 160 degrees Wide viewing angle MONO OLED display module

Introduction:

Our TFT displays and video modules are available in a wide range of different sizes and versions. From small to large-area displays – everything can be represented. This kind of OLED display module has a 55.01x27.49 mm² active area. This display module is 128x64 dot resolution.

Specification:

NO	ITEM	SPECIFICATION	UNIT
1	Dot Matrix	128 x 64	dot
2	Dot Size	0.4 (W) x 0.4 (H)	mm²
3	Dot Pitch	0.43 (W) x 0.43 (H)	mm²
4	Aperture Rate	86	%
5	Active Area	55.01 (W) x 27.49 (H)	mm²
6	Panel Size	60.5 (W) x 37 (H)	mm²
7	Panel Thickness	1.82 ± 0.1	mm
8	Module Size	60.5 (W) x 47 (H) x 2.027 (T)	mm³
9	Diagonal A/A size	2.4	inch
10	Module Weight	8.95 ± 10%	gram

Features:

- Small molecular organic light emitting diode.

- Color : Yellow

- Panel resolution : 128*64

- Driver IC : SPD0301

- Excellent Quick response time : 10µs

- Extremely thin thickness for best mechanism design : 2.027 mm

- High contrast : 2000:1

- Wide viewing angle : 160°

- Strong environmental resistance.

- 8-bit 6800/8080-series parallel interface, Serial Peripheral Interface, I2C Interface.

- Wide range of operating temperature : -40 to 70°C

- Anti-glare polarizer.

Drawings:

Quality control:

1.Quality control involves testing of units and determining if they are within the specifications for the final product.

2.Quality testing involves each step of the manufacturing process. Employees often begin with the testing of raw materials, pull samples from along the manufacturing line and test the finished product.

3.We confirm 100% QC outgoing control before release shipment.
