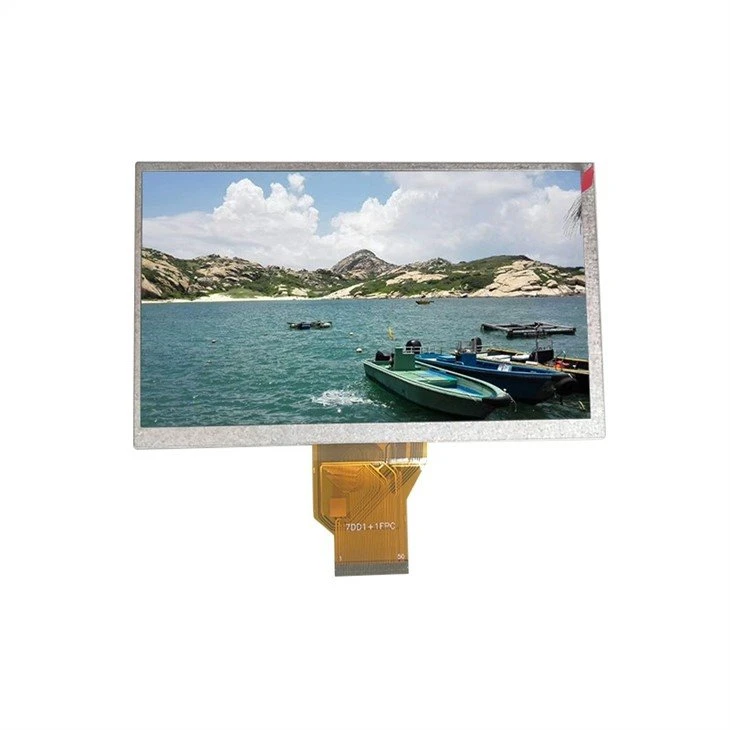

7 Inch 800x480 LCD Screen
Product Description
7 Inch 800x480 LCD Screen is a 800X480RGB TFT liquid crystal display. It can be easily run and operated through a digital interface. It consists of a color TFT LCD panel, driver IC, FPC and backlight unit. It is often used as instrumentation, industrial control equipment, medical equipment, etc., and is also often used in the power communication industry.
Features
7 Inch 800x480 LCD Screen is produced by automated equipment, so the quality is guaranteed and the service life is long. It has high-definition screen quality, which can give people a comfortable visual experience. It is independently developed by a professional technical team, so it can be customized according to customer requirements and can adapt to more solutions.
Specification
Size | 7 inch |
Resolution | 800(RGB)*480 |
Interface | Digital |
Technology Type | a-Si TFT |
Dot pitch (mm) | 0.0642(W) 0.1790(H) |
Color arrangement | RGB stripe |
Display Mode | Transmissive |
Surface Treatment | Anti-Glare |
Viewing Direction | 6 o’clock |
Gray Scale Inversion Direction | 12 o’clock |
LCM (W x H x D) (mm) | 164.9×100.0×7.25 |
Weight(g) | TBD |
Product Drawings:
Packing Drawing:
No. | Item | Model(Material) | Dimensions(mm) | Unit Weight(Kg) | Quantity | Remark |
1 | LCM module | DT80048S007RD | 164.9x 100.0x 5.7 | TBD | 50pcs | |
2 | Partition | B Corrugated paper | 512x349x226 | 1.466 | 1set | |
3 | Corrugated Paper | B Corrugated Paper | 510x350 | 0.071 | 4pcs | |
4 | CorrugatedBar | B Corrugated paper | 512x11x3 | 0.046 | 4pcs | |
5 | Dust-Proof Bag | PE | 700x530 | 0.048 | 1pcs | |
6 | A/S Bag | PE | 180x133x 0.2 | 0.002 | 50pcs | |
7 | Carton | Corrugated paper | 530x 355x 255 | 1.10 | 1pcs | |
8 | Total weight(g) | TBD | ||||
Deliver,shipping and serving:
Our delivery time is very fast and efficient. After you purchase our products, after communicating with our customer service staff, we will give you an accurate delivery time. Each of our products are individually packaged with carton and pearl cotton, plus outer box protection, to ensure that the product can not be damaged during transportation and handling. In addition, we have the most efficient customer service team that can solve your problems in the first time and communicate with you patiently.
