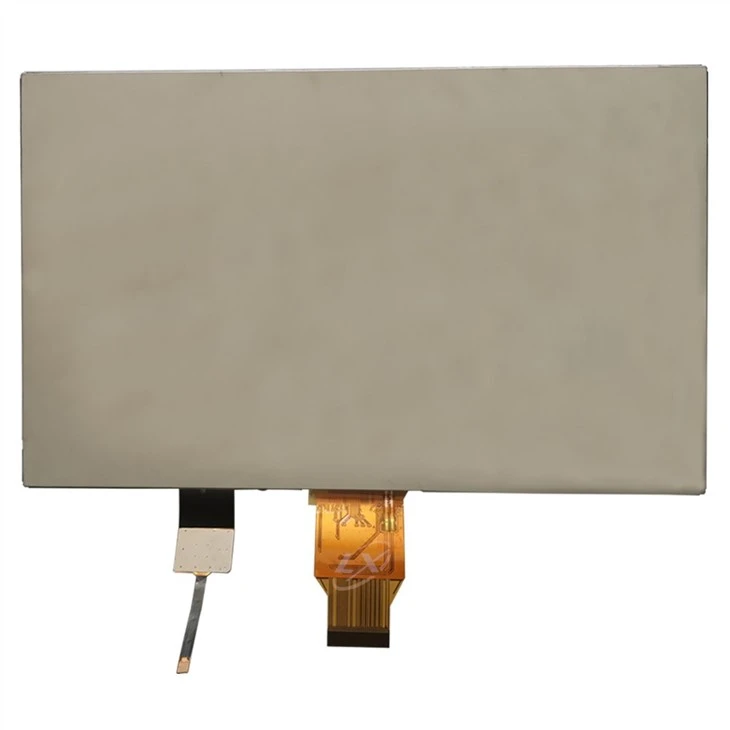

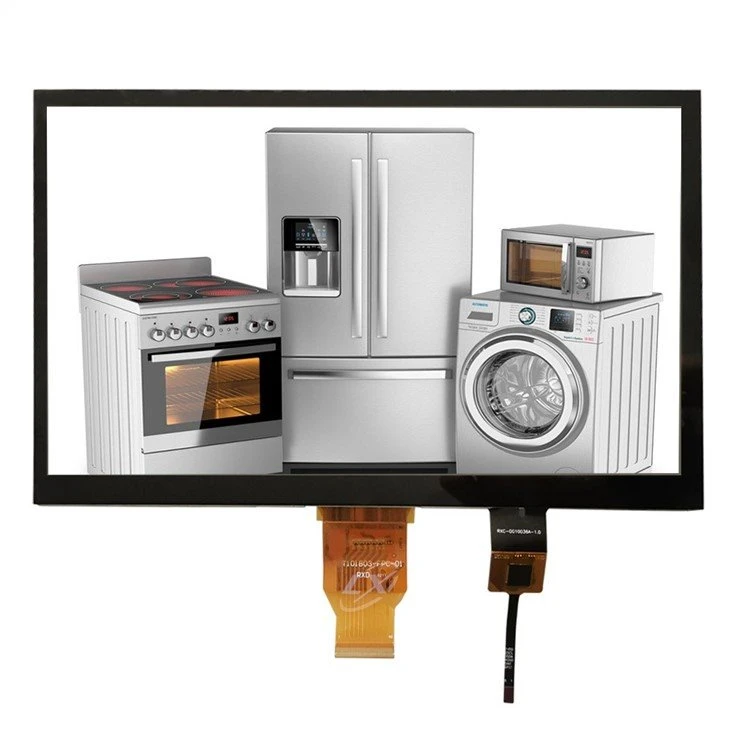

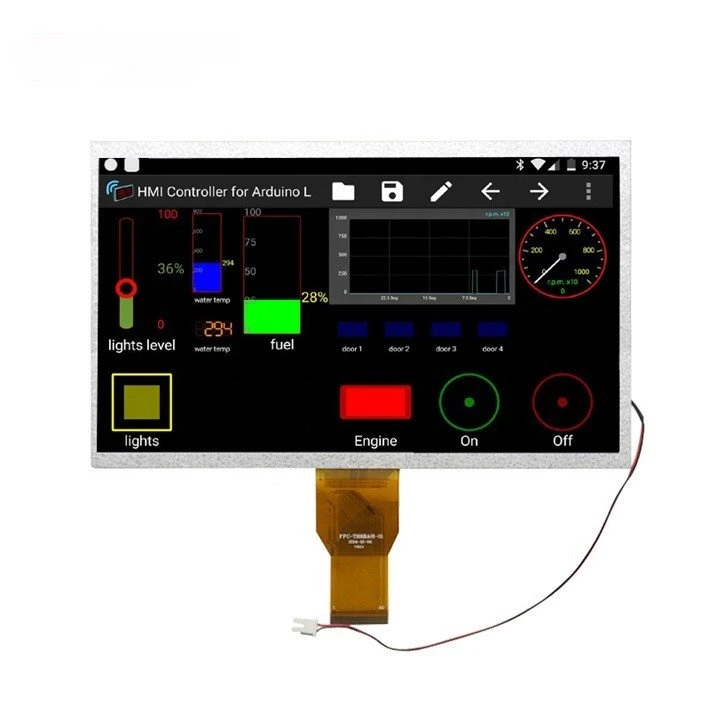

10.1 Inch TN LVDS LCD Screen
10.1 inch Graphic 1024*600 Dot-matrix TFT LCD Module
Product introduction:
This is a 1024(RGB)X600 dot-matrix TFT LCD Module.This module can be easily accessed by LVDS interfaces. This 10.1 inch LCD Module has 222.72×125.28 mm2 Active area.
Specification:
Item | Contents | Unit |
LCD type | TFT TRANSMISSIVE | |
Viewing direction | 6 o’clock | |
Module size (W×H×T) | 235 × 143 × 4.5 | mm |
Active area(W×H) | 222.72×125.28 | mm2 |
Number of dots(W×H) | 1024(RGB) × 600 | dots |
Pixel Pitch(H×V) | 0.2175×0.2088 | mm |
Driver IC | EK79001 | |
Colors | 16.7M | |
Backlight Type | 42 white leds 9.6V 280mA | |
Interface Type | LVDS |
Our service and advantage
1.We have many experience on OEM work.
2.We can customize special hardware as customer demand.
3.Technical service for assembling.
4.Variety types for selection, prompt deliver.
5.Well-equipped with extensive sales network.
6.Advanced Production equipment and production technique.
7.Competitive Price (Factory direct price) with our good service.
8.Different designs are available according to customer requests.
9.Excellent quality testing equipment, 100% inspection on critical.
Block Diagram:
Product Drawings:
QUALITY ASSURANCCE
1. Strict contract auditing invloved all departments to assure the feasibility of each order.
2. Process design and validation before bulk production.
3. Strictly control on all raw and auxiliary materials, All raw materials reach the world advanced level.
4. On-site inspection to all processes, inspection record keep traceable for 3 years.
5. All inspectors are skilled with international certificates.
6. Qualified WPS and professional welders guarantee welding quality.
7. 100% inspection of finished sprouts before shipment.
