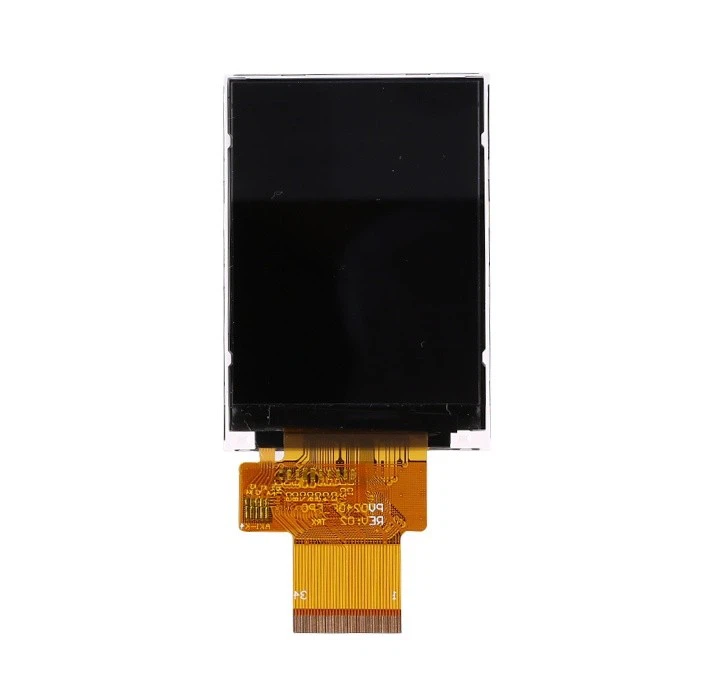

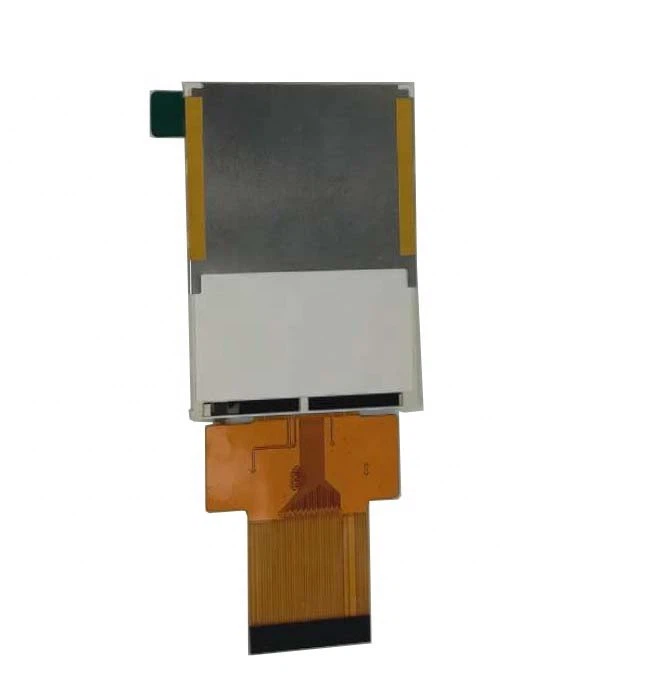

2.4 inch sunlight readable outdoor transflective TFT LCD screen

Overview

This LCM is a transflective mode tft display, with pretty good view effect under sunlight, particularly has low power consumption, it has been widely used in outdoor portable application.

Specification

Feature			Spec.
Display Spec.	Size		2.4 inch
	Resolution		240(RGB)x320
	Panel Thickness		0.5mm
	Display Type		TRANSFLECTIVE
	Color Depth		262K
	Dot Pitch (mm)		0.153(H)×0.153(V)
	Pixel Configuration		RGB Vertical Stripe
	Driver IC		ILI9341V
	Viewing Direction		ALL
	Input Interface		RGB、CPU 、SPI interface
	DIM.	LCM (W x H x D) (mm)	42.92(W)×60.26(H)x2.48(D)
Mechanical Characteristics	Active Area(mm)		36.72(H)×48.96(V)
	Weight (g)		12.4±5
	LED Numbers		2*2 LEDs (serial)

Company advantages:

Small minimum order quantity accepted

Professional with 16 years rich experience

Short lead-time and fast response

ISO 9001 and RoHS Directive-compliant certified factory supplied

TFT LCD module with touch panel

ODM development

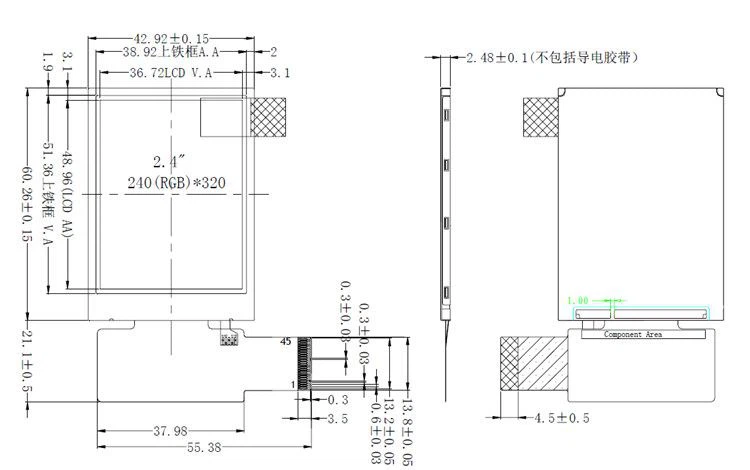

Drawings

DOCUMENTATION.

Please contact us at Skype:vivi.hou@das-tek.com or just send us an message on website link and we will send the datasheet for reference within 24 hours.

- TFT Datasheet

- Driver IC Datasheet

- RoHS

- REACH

- CMRT Questionnaire

ACCESSORIES.

- Mating Connectors

- Transfer Board with Connector

- Demo Boards (Test Kit)

- HDMI driver boards (Optional)

CONTACT US.

Send us a message by Trade Manager or just send an Inquiry and share us your original idea. we will write you back within 24 hours. Or use the most popular IM APP to find me at:

Skype: vivi.hou@das-tek.com

Wechat: 13472725598

How to ship

Hot Tags: 2.4 inch 240x320 transflective outdoor lcd display, China, suppliers, manufacturers, factory, custom, wholesale, price, 2 4 inch LCD display, 36 pin lcd display, 2.4 inch LCD display, 128x64 dot matrix lcd display, 16x2 character lcd display, transflective LCD display

2.4 Inch 240x320 Transflective Outdoor LCD Display
