Product Description

1.14 Inch 135x240 LCD Display Module is a liquid crystal module, which includes a series of LCD screen, iron frame, iron frame, PCB circuit board, driver IC, control IC, backlight and so on. Color LCD module with 135*240 resolution, high image quality, full viewing angle, FPC connection. It can be plugged in, connected with a connector. It can support CTP assembly. It's applicable to various instruments and meters, industrial automation, communication equipment systems, medical systems, etc.

Product Features

1.14 Inch 135x240 LCD Display Module has a solid structure, a back light with a retaining wall, and a welded FPC. IC is powerful and stable. The power consumption is low, about 10-200mW. Strong command function: It can be combined into various input, display and shift modes to meet different requirements. The interface is simple and convenient: a 4-wire SPI serial interface is adopted.

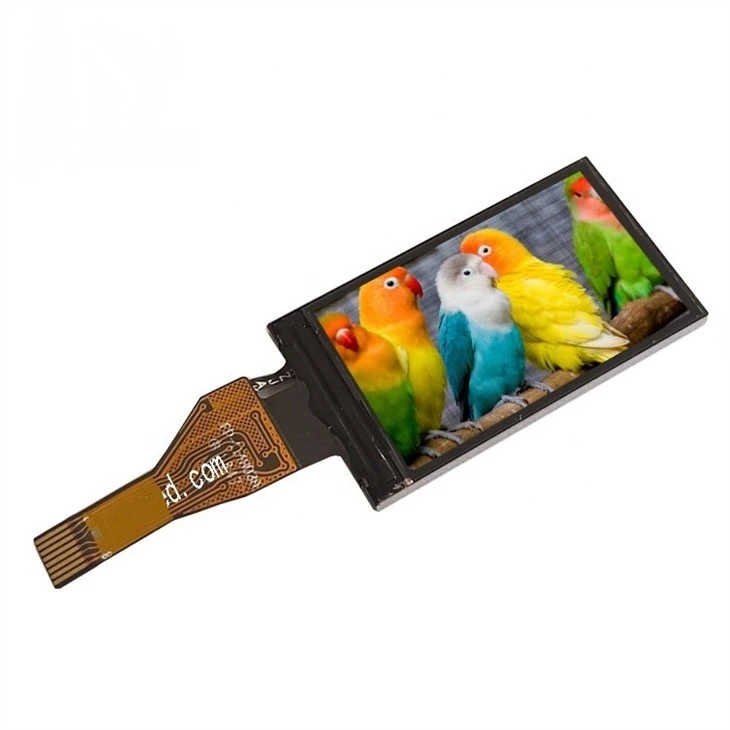

1.14inch tft LCD Display Module, 135x240 Resolution, mini lcd screen

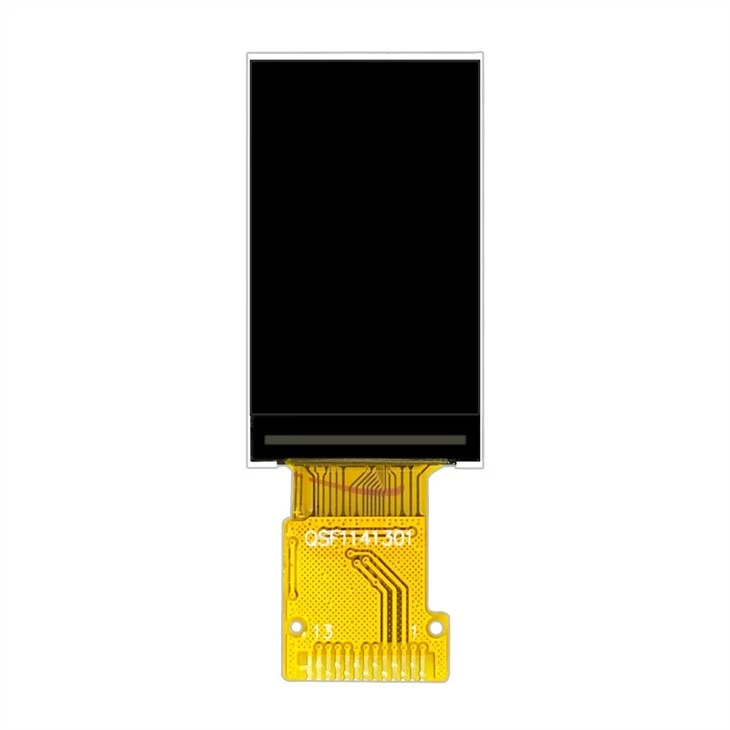

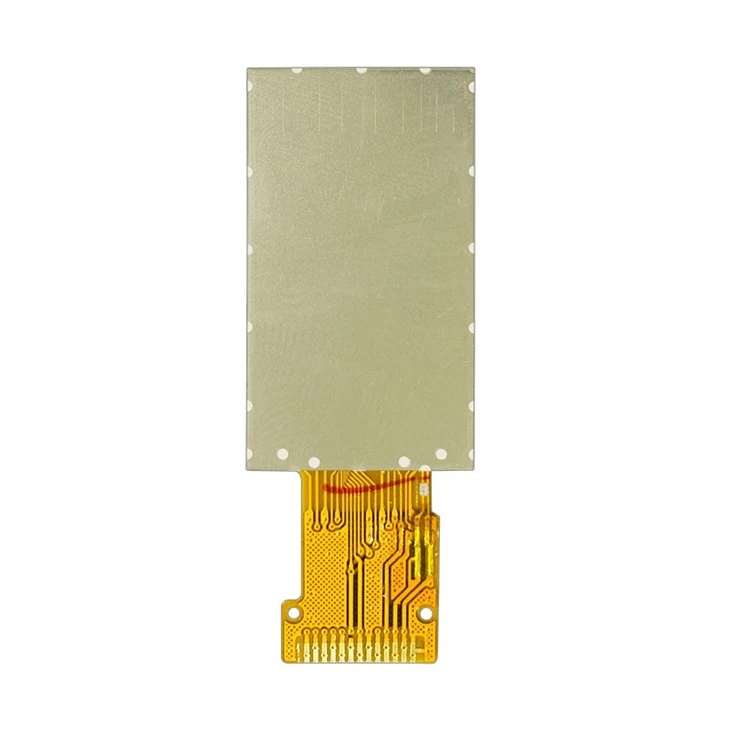

Ready to ship 1.14inch 135x240 dots tft lcd display

LCD Specification

LCD type: 262K, a-SI, TFT TRANSMISSVIE, NORMAL BLACK

Diagonal length: 1.14 inch

Recommended Viewing Direction: All

Dot arrangement: 135x240

Module Size: 17.60*31.00*1.56

Active area (W*H): 14.86*24.91

Pixel size (W*H): 0.1101*0.1038

Backlight Type: LED

Drive IC: ST7789V2

Interface Type: SPI4 LINE

Contrast Ratio: 800

Response time: 30ms

LCM Surface Luminance：350nits

Operating Temperature: -10 to 60˚C

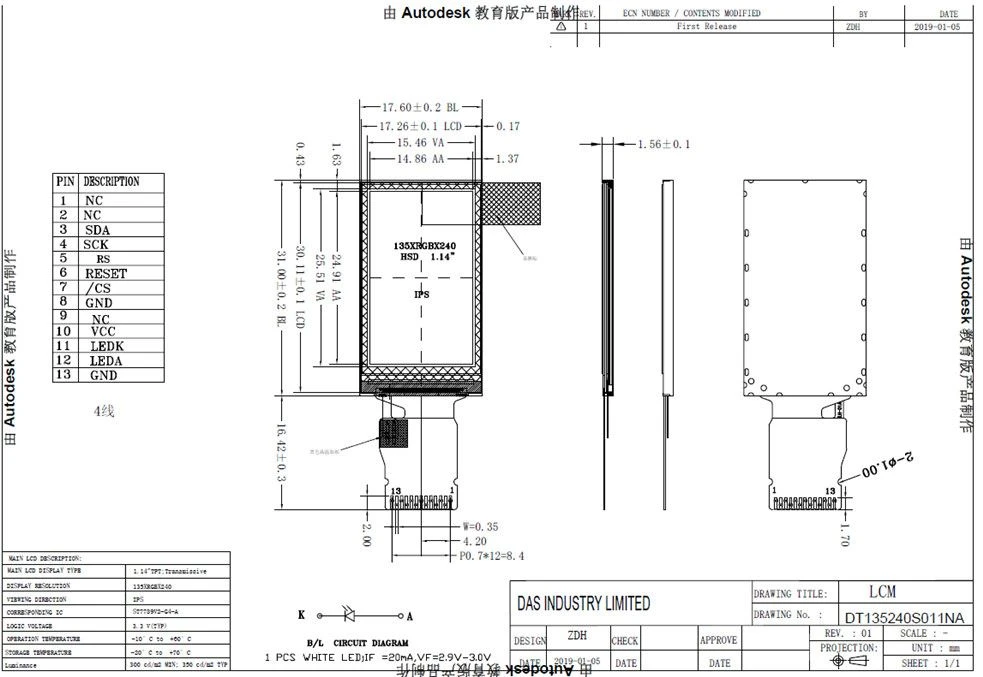

Outline dimension

LCD Display Knowledge

What’s IPS lcd display？

IPS(In-Plane Switching) display , we also call it“Super TFT”.The advantages of IPS screen are wide viewing Angle, fast response speed, accurate color restoration, which is the high-end product in LCD panel. And compared to the PVA panel, the LCD TV with IPS screen can achieve 780 lines of dynamic resolution. And static definition, according to 720 lines of high definition standard requirements can still achieve high definition. The panel technology enhances the dynamic display of LCD TVs, providing better picture quality when watching fast-moving programs such as sports events and action movies. Compared with other types of panels, IPS panels are not prone to water pattern deformation when gently scratched by hand, so they are also known as hard screens. When you look closely at the screen, if you see a fish scale pixel facing left, plus a hard screen, then you can be sure it's an IPS screen.

According to the test results, the technical experts said: IPS hard LCD TV is capable of excellent performance of dynamic high-definition images, especially suitable for motion image reproduction, no residual and trailing, is the ideal vehicle for watching digital high-definition images, especially fast motion pictures, such as races, racing games and action movies. The panel said the unique horizontal molecular structure of the IPS screen makes it stable and free of water, shadows and flashes when touched, making it ideal for touch-enabled televisions and public displays.
