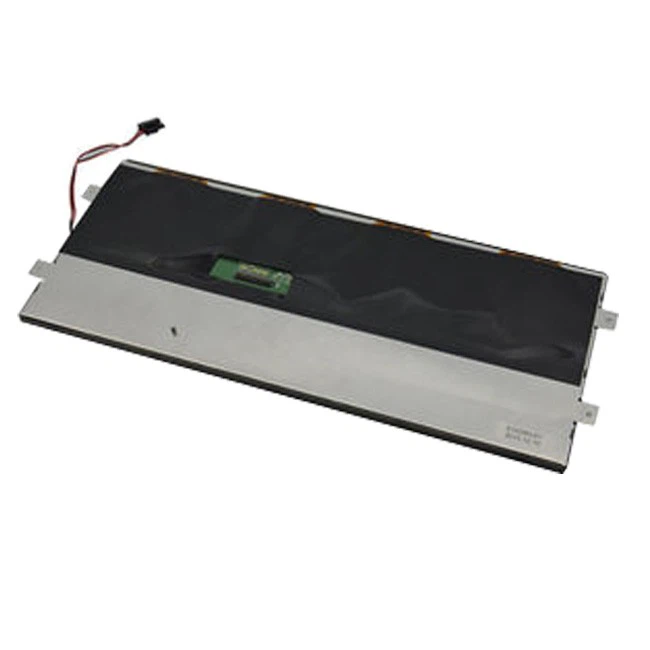

12.3 Inch 1920x720 Bartype LCD Display
Product Description
12.3 inch module is a color active matrix TFT LCD module using LTPS silicon TFT‘s (Thin Film Transistors) as an active switching devices. 12.3 Inch 1920x720 Bartype LCD Display is a transmissive type display operating in the normal black. The TFT-LCD has a 12.3 inch diagonally measured active area with resolutions (1920 horizontal by 720 vertical pixel arrays). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this panel can display 16.7M colors.
Characteristics
12.3 Inch 1920x720 Bartype LCD Display has ultra-high dynamic contrast, the color display is more saturated and gorgeous, and the visual effect is more three-dimensional and realistic. It has an ultra-fast response time, and the unique backlight scanning technology enhances the visual performance under dynamic pictures. It is processed by unique technology, so the screen has the characteristics of high reliability and good stability. It uses imported materials. Besides, the ability to absorb and dissipate heat with great efficiency minimizes the light attenuation of the LED lamp to achieve energy saving, long life, effective energy saving, and the product is lighter and thinner.
General Specification
| Parameter | Specification | Unit | Remarks |
| Active area | 292.032(H) x 109.512(V) | mm | 8:3 |
| Number of pixels | 1920(H) x RGB x 720(V) | pixels | |
| Pixel pitch | 0.0507(H) x 0.1521 (V) | mm | |
| Display colors | 16.7M | colors | |
| Display mode | Normally black | ||
| Module outline | 300.03 * 123.51*7 | mm | |
| Module border(L/R/U/D) | 4/4/4/10 | mm | |
| Surface coating | HC | ||
| Driver IC | 1*TD7800 | TDDI+GOA |
Electrical Characters
Environment Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Remarks |
LCD Logic Voltage | VCI_ IN | -0.3 | 4 | V | Ta=25+/-2°C |
Operating Temperature (Humidity) | Top | -35 | +85 | °C | |
| RH | - | 90 | % | At 60°C | |
Storage Temperature (Humidity) | Tst | -40 | +95 | °C | |
| RH | - | 90 | % | At 60°C |
Pin Definition

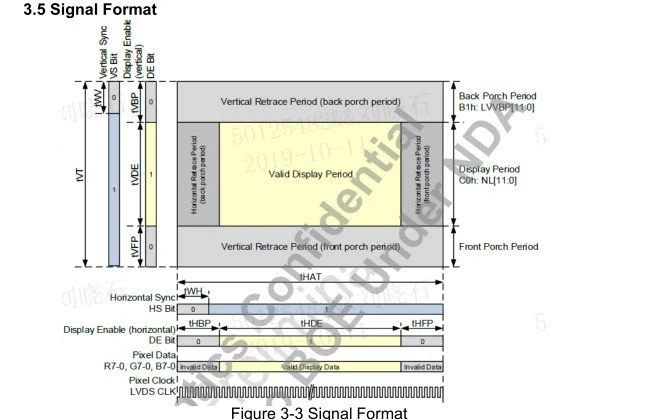

Signal Format
Applications
The products are used in many related fields, such as car navigation, industrial automation, medical, rail transportation, communications, POS display systems, monitoring systems, defense technology, GPS global positioning systems, automatic toll collection devices, police equipment, transportation equipment, Human machine room, projection and CTI (Network Communication Integration) system, etc.
