Stn Transflective LCD Display Digital Segment LCD Display
Product Introduction
We have always followed the concept of providing excellent service to our customers by finding and developing better 0 49 inch OLED display, OLED module, TFT IPS LCD display for them. We have never stopped in the pursuit of excellence, always uphold the concept of 'quality is the life of an enterprise' and 'create value for users' and continue to move forward. Our new corporate culture concept system inherits the excellent historical and cultural genes, reflects both the realistic requirements and integrates the future needs.
3 inch outdoor transflective TFT LCD screen
Overview
This single-display module is suitable for use in outdoor application. The LCD adopts backlight and transflective glass. Low power consumption and clear view under sunlight.
Specification
Feature | Spec. | ||
Display Spec. | Size | 3 inch | |
Resolution | 240(RGB)x400 | ||
Interface | RGB+3SPI/CPU | ||
Color Depth | 262K | ||
Technology Type | a‐Si TFT | ||
Dot Pitch (H×V) | 0.1269 (W)X 0.1269 (H) mm | ||
Display Mode | Transmissive | ||
Surface Treatment | HC | ||
IC | HX8352-B | ||
Viewing Direction | 6 o' clock | ||
Mechanical Characteristics | Assy Type | COG+FPC+BL | |
DIM. | LCM(WxHxD)(mm) | 47.28x76.4x2.4 | |
Active Area(mm) | 38.88x 64.8 | ||
BACKLIGHT | 5 LED | ||
Features
Comes with development resources and manual
RoHS Compliant
Operating temperature :-20 to 70°C
Service:
1. Good knowledge on different market can meet special requirements.
2. Real manufacturer with our own factory located in Shanghai, China
3. Strong professional technical team ensure to produce the top quality products.
4. Special cost control system ensure to provide the most favorable price.
5. Rich experience on lcd module.

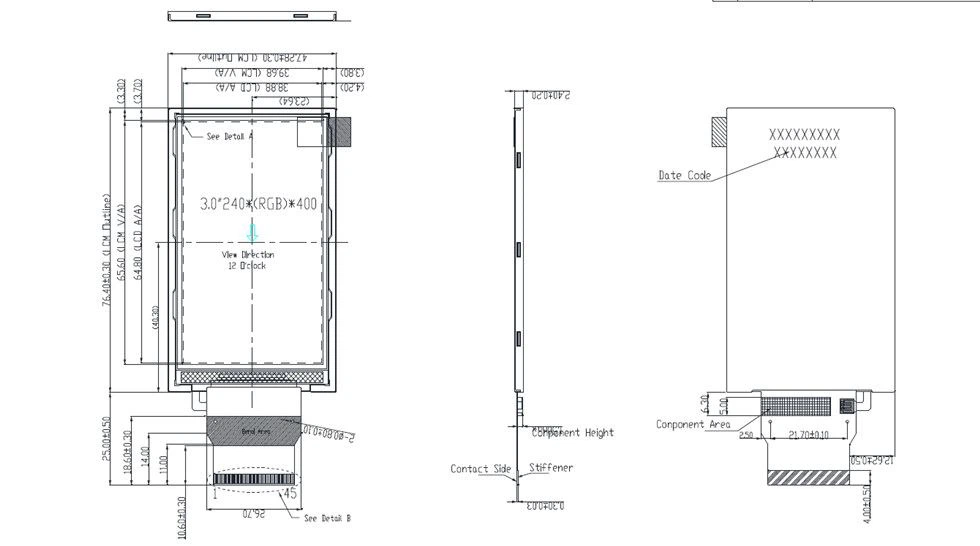

Drawings
FAQ
1.When can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please send us a e-mail (vivi.hou@das-tek.com) tell us so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
If you need the samples, we would like to send sample from our Chinese factory or u can get the sample directly from us.
3.What kind of files do you accept for printing?
PDF, Core Draw, high resolution JPG .
4.Can you do the design for us?
Yes. We have a professional team having rich experience in design and manufacturing.
5.How long can I expect to get the sample?
3-5 working days for samples.
6.What about the lead time for mass production?
15-20 working days for mass production.It depends on your quantity,and we will try our best to meet your needs.
7.What is your terms of delivery?
EXW, FOB, CIF, etc.
We are a leading manufacturer of producing Stn Transflective LCD Display Digital Segment LCD Display and providing related solutions. With integrated business of design, R&D, production, sales and service, we are committed to bringing the best benefits for customers. Our company is a company with rich business experience, strong economic strength, advanced production technology, sound rules and regulations, and diversified services. Our advantages lie in that we continuously provide new items with excellent quality and reasonable price. It is our ultimate target to help our customers to create best profit and business opportunity.
