7inch 1200x1920 lcd display with mipi dsi interface
7inch LCD display module, 1200x1920 lcd display, mipi dsi LCD
About the display
It is a display designed for cellular phone with a mipi dsi interface, the resolution is 1200x1920. Mating connector on FPC :FH35C-31S-0.3HW(50) (HIROSE). Operating temperature is -10 to 60℃, storage temperature is -30 to 70℃.
The manufacturer is Das industry Limited, founded in 2005. For more details ,please feel free to contact us.
Quick Details
Feature | Spec. | |
Size | 7 inch | |
Resolution | 1200(RGB)x1920 | |
Display Type | Transmissive | |
Color Depth | 262K | |
Dot Pitch (mm) | 0.153(H)×0.153(V) | |
Pixel Configuration | RGB Vertical Stripe | |
Viewing Direction | ALL | |
Input Interface | MIPI-DSI | |
DIM. | LCM(WxHxD)(mm) | 98.7(W)x160.8(H)x1.975(D)(mm) (typ.) |
Active Area(mm) | 94.5(W) x 151.2(H) (mm) | |
Touch Panel | Without touch panel/ custom acceptable | |
Weight (g) | TBD | |
Application
Cell Phone
How to Test
Optical Test Method
Environment : Inside a dark room
Measuring Instrument : Used as shown below
Measurement point : Center of Active area unless otherwise specified
Direction of measurement : Vertical direction at Active area unless otherwise specified
(1) Luminance
Measure the luminance when white is displayed (gradation level L255) , and measure the Luminance.
(2) Contrast Ratio
Measure the luminance when black is displayed (gradation level L0), and the luminance when white is displayed (gradation level L255), and then contrast CR should be obtained from the next expression:
CR = L255 / L0
(3) Viewing Angle
Measure the contrast ratio by the direction specified by the conditions under company certeria.
(4) Luminance uniformity
Measure the luminance when white is displayed (gradation level L255), and so obtain luminance uniformity Lunf in the next expression.
Lunf = (Minimum luminance in the 9 point) / (Maximum luminance in the 9 point) × 100
(5) Displayed Color
Measure the displayed color of white raster (white: gradation level L255), red raster (red: gradation level L255 ), green raster (green : gradation level L255 ), blue raster (blue :gradation level L255), and measure each of the chromaticity coordinates: xW, yW, xR, yR, xG, yG xB, and yB.

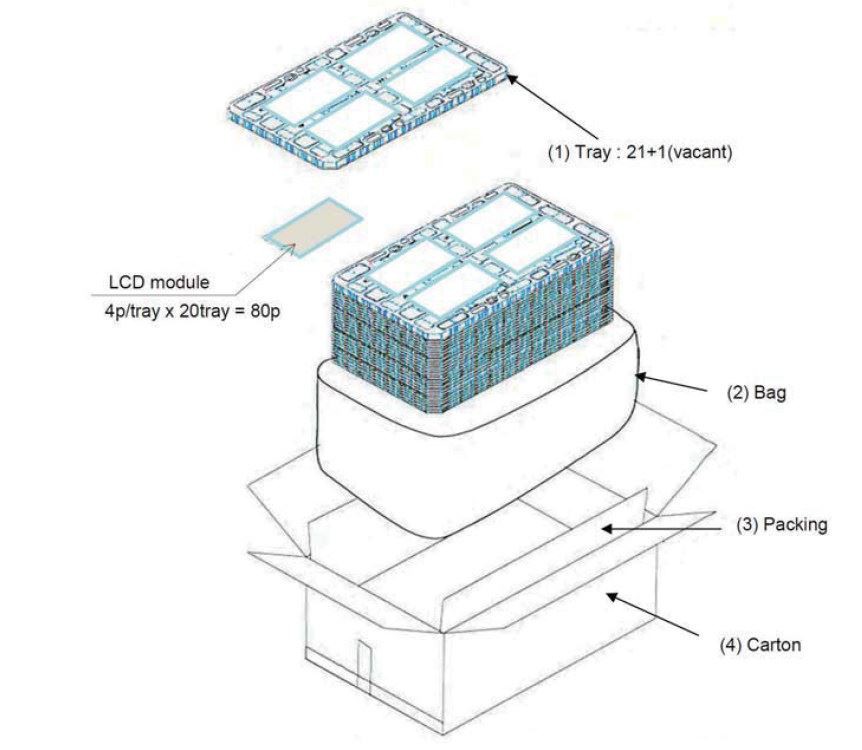

Pack information
Pack 4pcs displays every tray
Pack 20 trays every carton(24x32x48cm)
