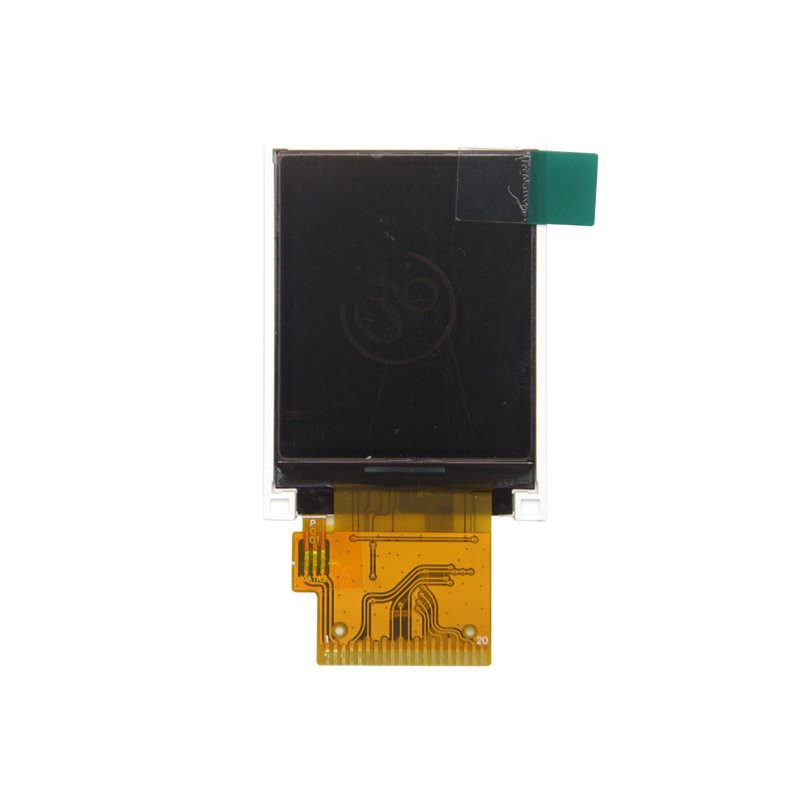

1.77 Inch Size 15 Pin /16 Pin /18 Pin /20 Pin LCD Screen TFT Module.

Over the years, we have carefully polished and innovated our products for the sake of making Passive Matrix OLED Display, LCD Panel Screen, LCD display module. We have a mature technology research and development team, random sampling of products to ensure that users use worry free. We encourage change and constantly seek better ways to enhance our business and personal development. After the development in recent years, our service is more humanized, product promotion is more standardized, and customer information is more perfect.

Product Description:

1-77-inch-128x160-lcd-display is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This model is composed of a transmissive type TFT-LCD Panel, a driver circuit and a back light unit. The resolution of a 1.8’TFT-LCD contains 128x160 pixels, and can display up to 65K colors. In the production process of the display screen, automatic reflow soldering process is adopted without manual post soldering. It is used in handheld devices, industrial control equipment, vehicle-mounted instruments, digital watches, etc.

Features

The body is thin, which is good for saving space. And it is a low-power-consumption product. Because of no radiation, 1-77-inch-128x160-lcd-display is good for health. The picture is soft and does not hurt the eyes, and the eyes are not easy to fatigue. Miniaturization, long life, low working voltage, stable performance and impact resistance are its characteristics. The LED display has bright colors and strong three-dimensional effect. The response speed is fast, and the brightness can be automatically adjusted according to the environment. Besides, the large screen, strong vision, and the replacement of advertising content are simple and convenient and faster.

Specification:

Size: 1.77 inch

Number of pixels: 128(RGB)*160

Display mode: Transmissive/ Normally White

Display colors: 65K

Pixel pitch(mm): 0.219(H)*0.219(V)

Pixel arrangement: RGB vertical stripe

Controller IC: ILI9163V

Viewing angle: 12:00 o'clock

Interface: 8/9/16/18Bit MCU;3/4SPI+16/18Bit RGB

Module size(mm): 34(H)x47(V)x2.4(D)

Display area(mm): 28.02(Ｈ)*35.04(Ｖ)

Weight(g): TBD

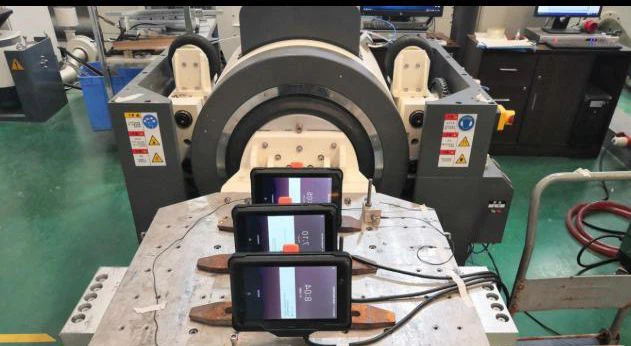

Product Qualification:

We have super-first-class assembly lines and production equipment to produce every clear and complete LCD display. At the same time, our unique production process will increase the pass rate of our overall products, so that our customers can better use our LCD display.

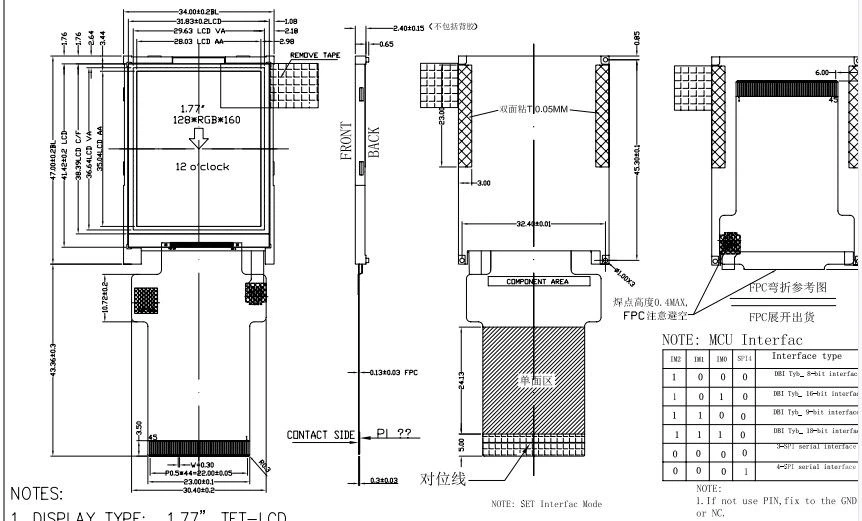

Product Drawings:

Deliver,shipping and serving:

Our delivery time is very fast and efficient. After you purchase our products, after communicating with our customer service staff, we will give you an accurate delivery time. If one party violates the transportation regulations, the communication will be conducted first, and solving the customer's problem is our primary goal. In addition, we have the most efficient customer service team that can solve your problems in the first time and communicate with you patiently.

We are honest, trustworthy, steady attitude and reliable quality, reasonable price, and strive to provide customers with satisfactory 1.77 Inch Size 15 Pin /16 Pin /18 Pin /20 Pin LCD Screen TFT Module.. We have made "diligent and pragmatic, innovative development, reputation first" as the business philosophy, the implementation of international marketing promotion, and gradually improve management. Our core value is "realizing ourselves and contributing to society".
